Method 1: Extend the CT twisted‑pair cable.
1. Buy suitable connectors and the required length of twisted-pair cable. The Wago 221-2411 (2-pole connector for two wires) is recommended.

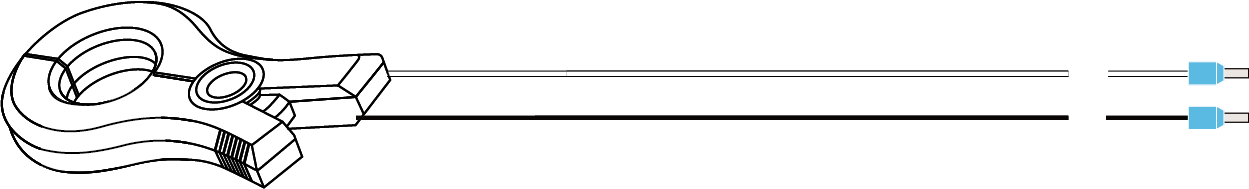

2. Cut the CT cable.

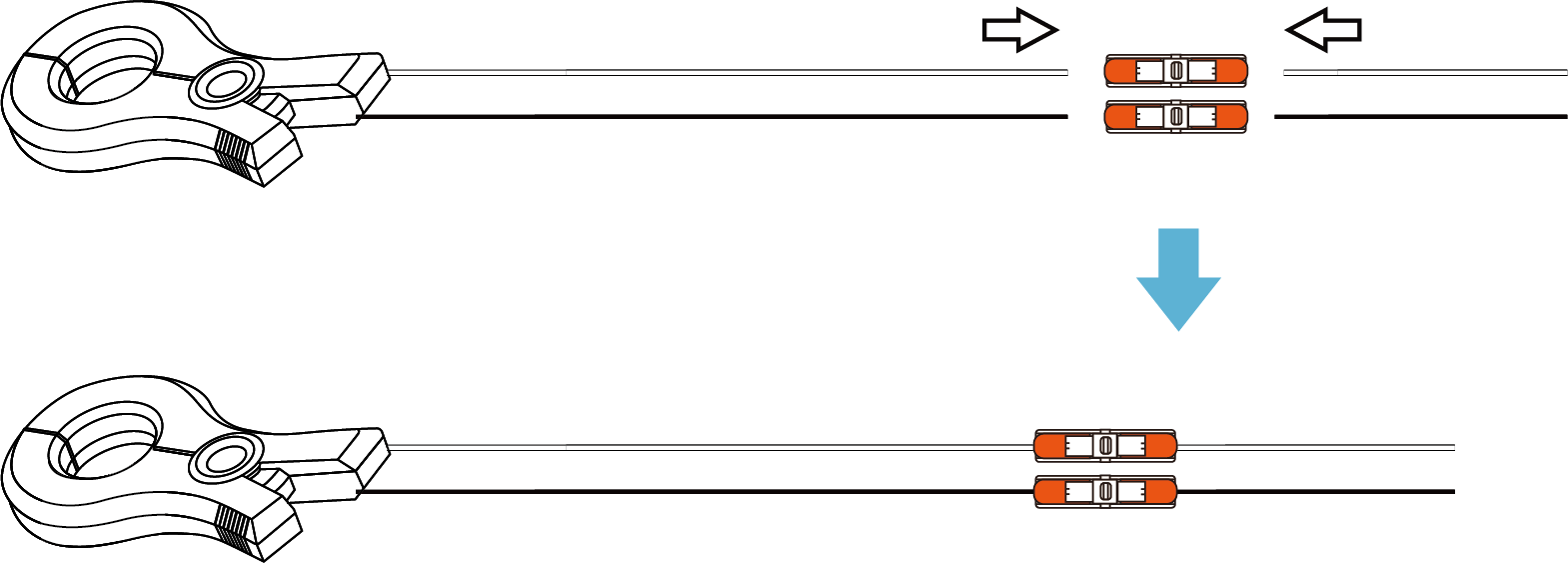

3. Connect the original CT twisted-pair cable and the new CT twisted-pair cable with connectors. (Strip length: 11 mm)

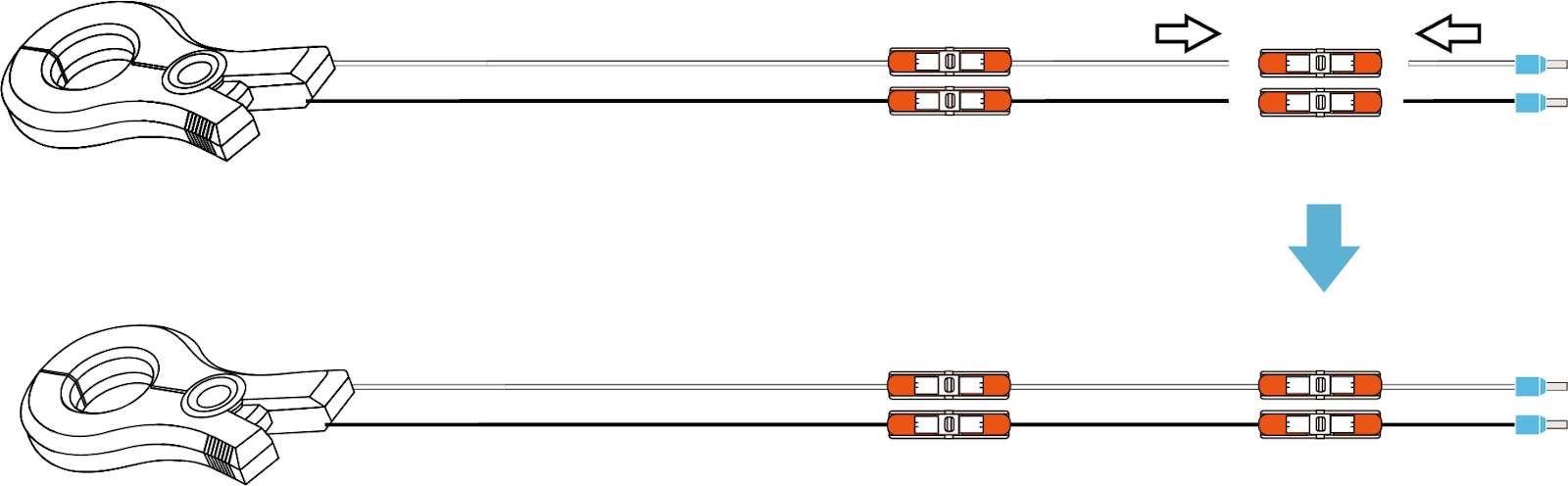

4. Connect the new twisted-pair cable to the CT terminals with connectors. (Strip length: 11 mm)

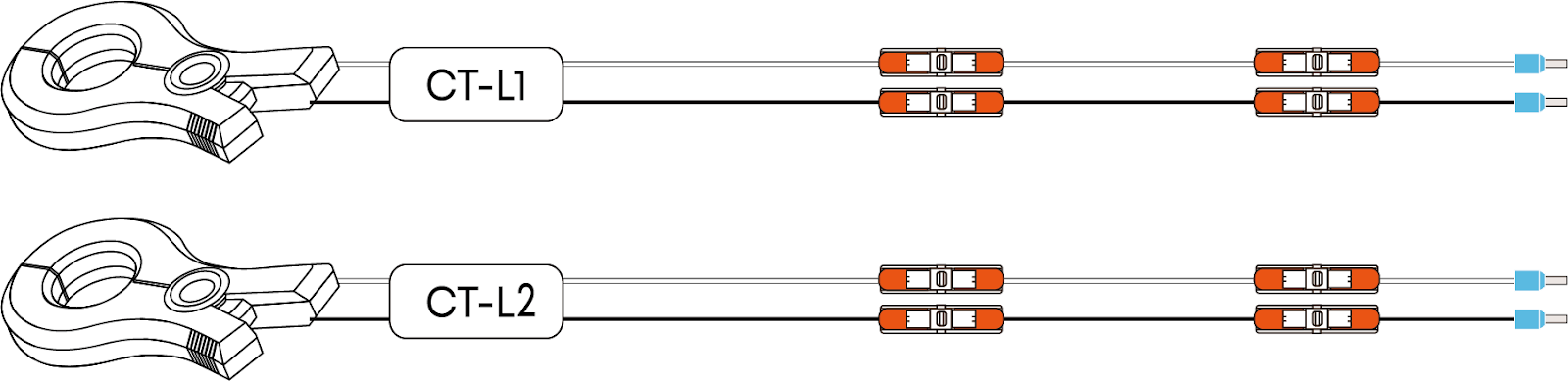

5. Repeat the process for the other CT wire.
Method 2:
Power Dock:
Use a separate installation. Install the ATS Box next to the main panel to shorten the distance.
-
Installation guide:
https://support.ankersolix.com/s/download-preview?urlname=Anker-SOLIX-Power-Dock-Quick-Start-Guide
Smart Inlet Box:
-
Purchase an Anker SOLIX Smart Meter for wireless communication.
-
Product link: https://www.ankersolix.com/products/smart-energy-monitor
-
Installation guide:
