Indoor Cam C220 User Guide (T8W11)

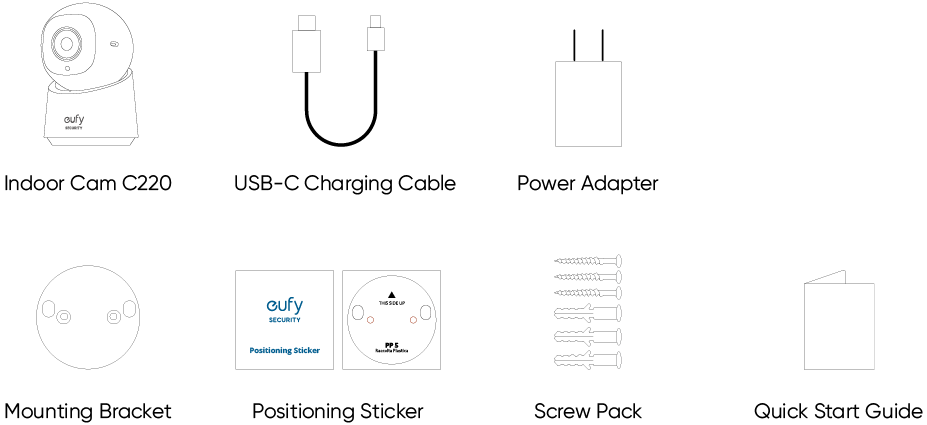

What's in the Box

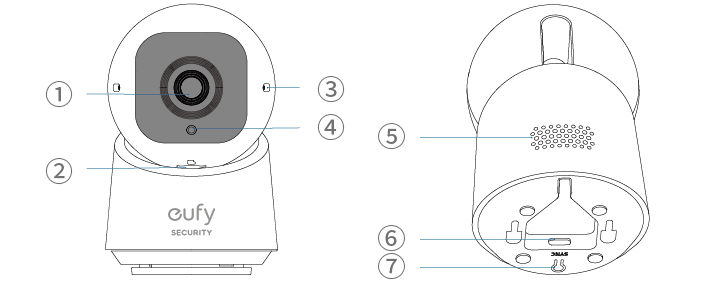

At a Glance

Lens

microSD Card Slot

  • Insert a microSD card* (not included) to store recordings

*Use at least a Class 10 microSD card with a maximum of 128GB.

Microphone

LED Indicator

Speaker

Power Input

SYNC Button

Setting up the System

1. Download and install the eufy Security app, then sign up or create an account.

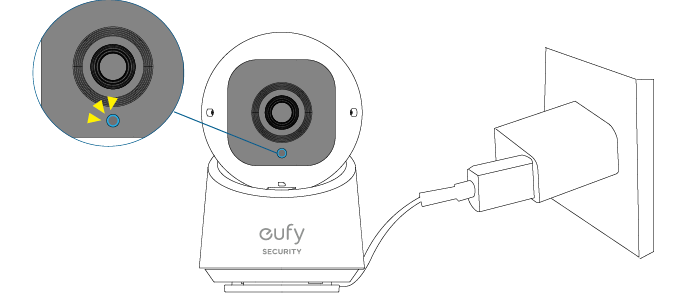

2. Connect the camera to a power source and wait until the status LED turns solid blue.

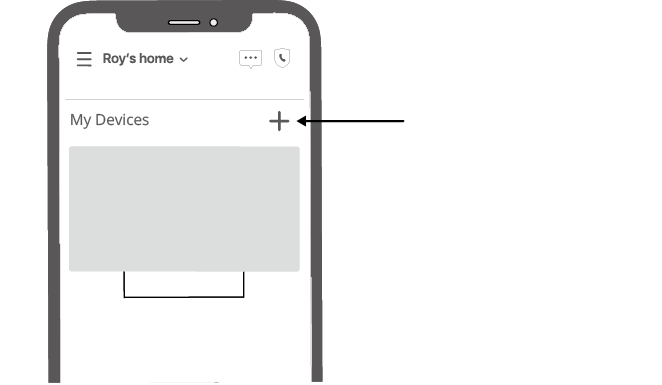

3. Tap + in the app and follow the in-app instructions to add your camera.

LED Light Guide

Solid Violet

System is initializing

Solid Blue

Working normally or ready for setup

Blinking Red

Not connected to the internet

Solid Red

Recording or the live stream is being viewed

Flashing Blue and Red

Firmware upgrade in progress

*Keep the camera connected to a power source

Installing your Camera

Choose a Location

The camera can be placed on a table or shelf, or mounted on a wall or ceiling. Choose a location and height that achieves your desired view and is within reach of a power outlet.

Keep the camera at least 0.7 ft (0.2 m) away from any objects or walls to avoid infrared reflections that can impact night vision performance.

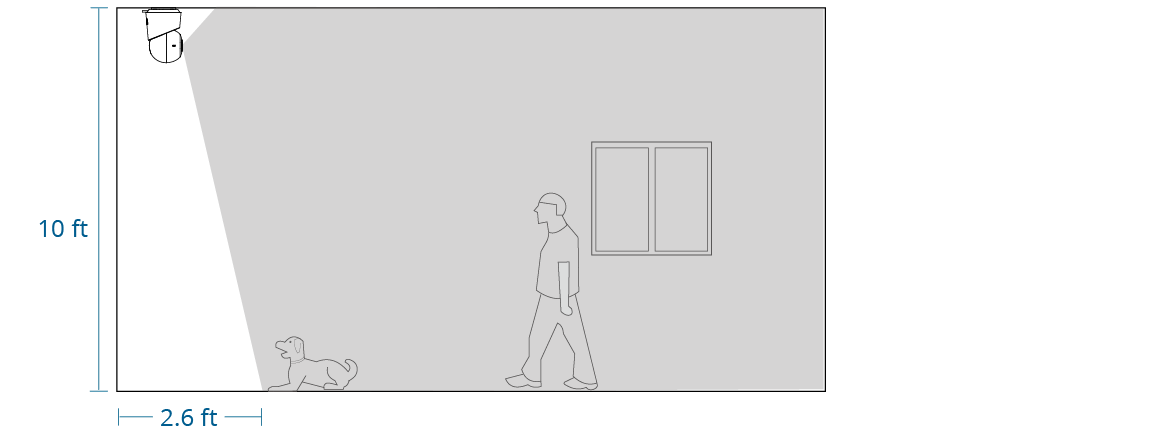

Camera Field of View

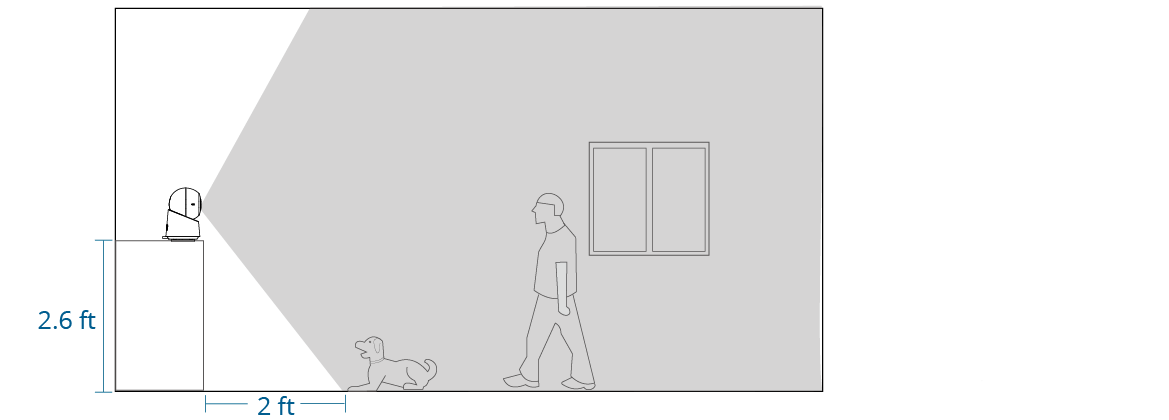

On a Table or Shelf

On the Wall

On the Ceiling

Mount on a Wall or Ceiling

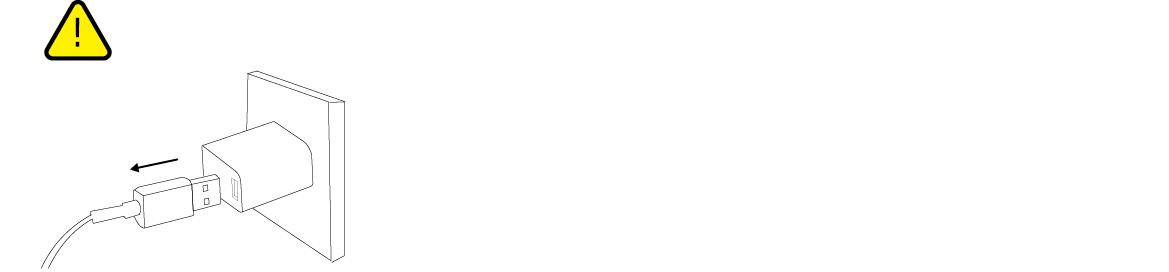

Warning: Disconnect the camera from the power outlet before mounting.

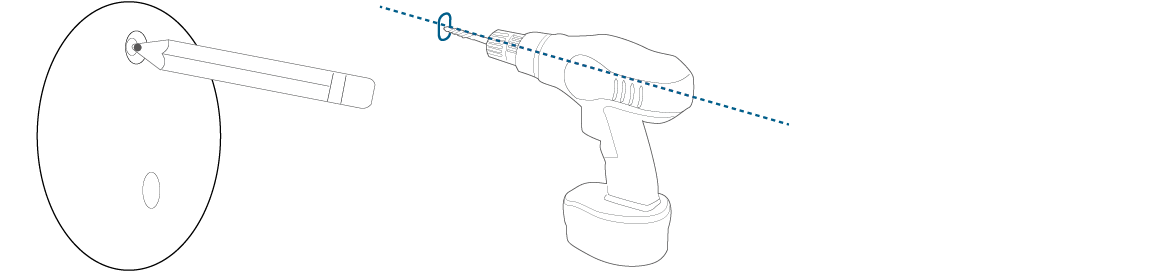

1. Mark the screw positions on the wall or ceiling with the positioning sticker and drill a pilot hole.

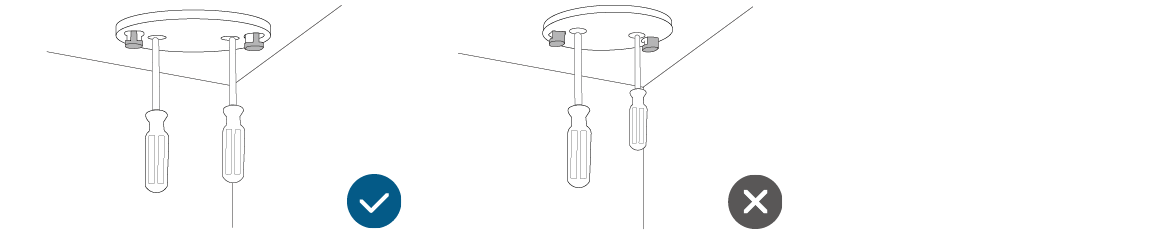

2. Hold the mounting plate on the wall and make sure the "UP" arrow is pointing, then secure the mounting plate on the wall or ceiling with the screws.

  • On the Wall

  • On the Ceiling

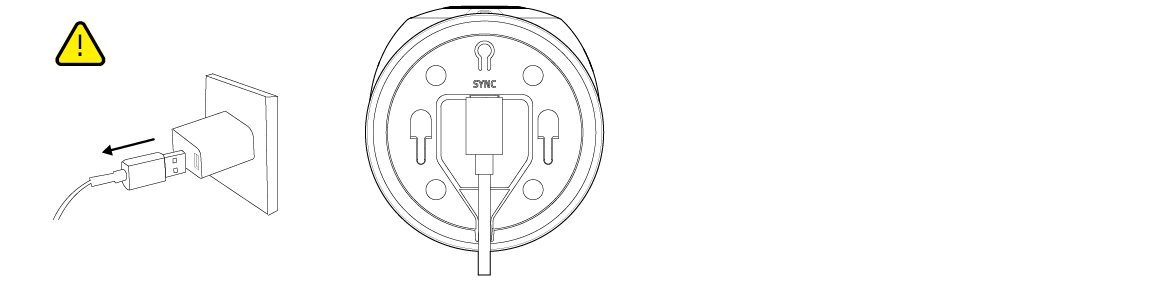

3. Unplug the camera. Connect the USB-C cable to the camera with the other end disconnected from a power source.

4. For wall mounting, place the cable into the cable channel of the mounting plate.

  • Skip this step for ceiling installation.

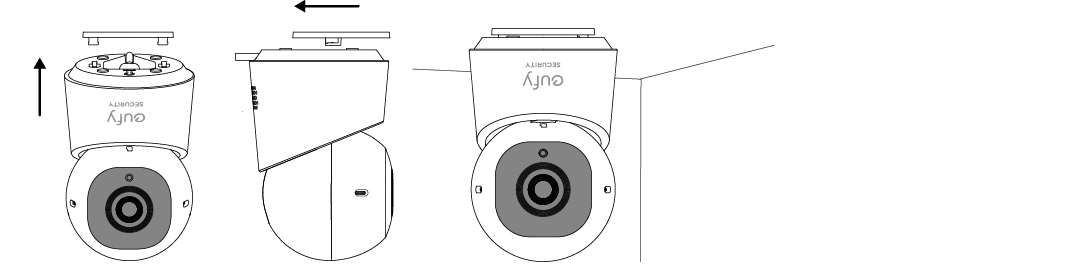

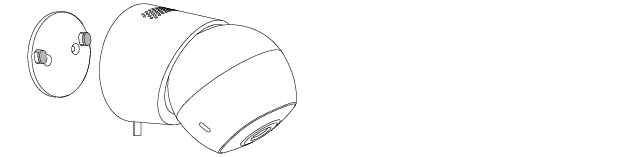

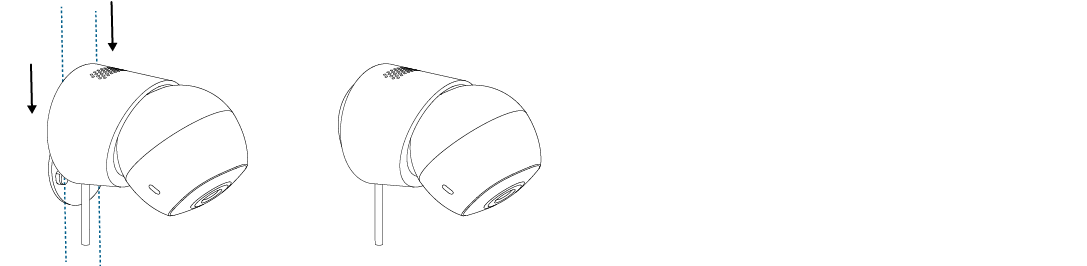

5. Slide the camera onto the mounting plate and make sure it is securely attached.

  • On the Wall

  • On the Ceiling
